Light Load Vibration Isolation – Megapoint ME500
The Megapoint vibration pad is the ideal vibration damping solution where it is necessary to isolate lightweight machinery or machinery with particularly low disturbing frequencies.

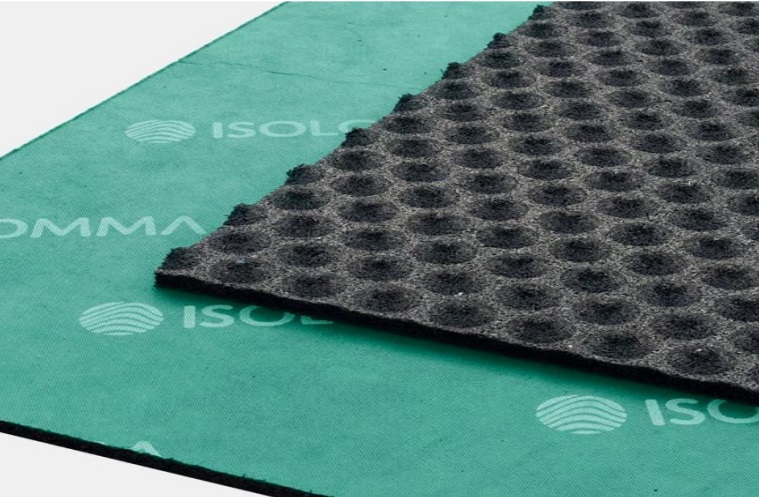

The Megapoint dimpled profile has been developed to attain high performance at a low thickness (25 mm) with excellent mechanical behaviour characteristics coupled with the strength required in industrial and construction applications.
The product is equipped with a high-weight support which makes the product ideal even under high-thickness inertia bases. The use of recycled raw materials contributes to the product having an extremely low environmental impact.
Features
- Vibration reduction for a wide range of loads and frequencies
- Quick and easy installation
- Waterproof backing layer
- Self-draining and freeze-thaw resistant product
- Resistant to oils and also to moderately aggressive acids
- Long-term performance and reliability
Megamat products are suitable for
- Lightweight machinery isolation
- Isolation of swimming pools
- Measurement rooms and test rooms
- Heat recovery systems
- Textile machinery
Techincal Details
The following four pages provide comprehensive technical data for the four different Megamat options,
helping you select the most suitable product for your needs. If you provide loading data and structural
information, our in-house technical team offers free design assistance and product recommendations tailored
to your project requirements. The Megamat line, with its four density options, ensures high performance in both
industrial and civil applications.
| Area of Application | Compression Load | Deflection |
|---|---|---|
| Static Range of Use (static loads) |
0.002 N/mm2 | 5% |
| Operating Load Range (Static plus Dynamic loads) |
0.002 ÷ 0.04 N/mm2 | 10% ÷ 30% |
| Load Peaks (Short Term Infrequent loads) |
0.10 N/mm2 | 40% |
| Physical Characteristics | Standard | Unit | MEGAPOINT | Tolerance | |
|---|---|---|---|---|---|
| Thickness | mm | 25 | ±2 | ||
| Length | m | 1,20 | ±0.01 | ||
| Width | m | 1,00 | ±0.01 | ||
| Density | kg/m3 | 11 | ±5% | ||
| Backing Superficial Mass | g/m2 | 90 | |||
| Colour | Black/Green | ||||
| Acoustic Characteristics | Standard | Unit | MEGAPOINT | Tolerance | |
| Stress at strain 10% | EN 826 | N/mm2 | 0.006 | ±10 | |
| Static Modulus of Elasticity (Es) strain 10% | EN 826 | N/mm2 | 0.060 | ±10 | |
| Dynamic Modulus of Elasticity (Ed) strain 10% | UNI 11059 | N/mm2 | 0.296 | ±10 | |
| Loss Factor (n) | UNI 11059 | 0.147 | ±10% | ||
| Physical & Chemical Characteristics | Standard | Unit | ME 10/EPM | MEGAPOINT | Tolerance |
| Temperature Range of Use | -20°C/+110°C | ±5 | |||
| Inflammibility | UNI 13501-1 | E | |||
